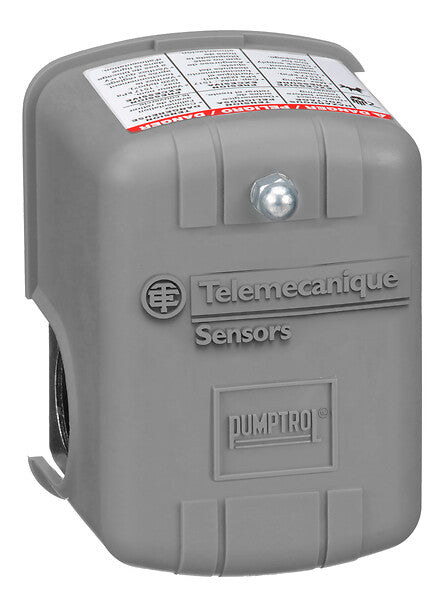

Telemecanique Sensors Water Pump Switch 9013FS Adjustable Diff. - 30-50 psi

Characteristics

Main
Range of product Pumptrol
Pressure sensor name 9013FS
Value of setting 30...50 psi
Electrical circuit type Power circuit
Product specific application Control electrically driven water pumps
Quantity per set 1
Type of packing Clam packaging

Complementary

Pressure sensor type Electromechanical pressure switch
Controlled fluid Fresh water (32-158 °F)
Pressure actuator Diaphragm
Pressure switch type of operation Regulation between 2 thresholds
Scale type Adjustable differential
Setting Internal
Local display Without
Contacts type and composition 2 NC, snap action, DPST-DB, Form YY
Electrical connection Screw-clamp terminals, clamping capacity: 10 AWG, screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type 0.25 inch NPSF internal conforming to UL 508
Materials in contact with fluid Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm
Material Polypropylene: cover, noryl thermoplastic resin or equivalent: cover
Operating position Any position
Terminal block type 4 terminals
Operating rate 10 CYCLE_PER_MINUTE
Repeat accuracy +/- 3 %
Terminals description ISO n°1
L1-T1
L2-T2
Factory modification Not applicable

Environment

Standards
CE
NSF ANSI 61 Annex G
UL 508
Protective treatment None
Product certifications

CSA
UL listed
NEMA degree of protection NEMA 1 conforming to UL 50
IP degree of protection IP20 conforming to IEC 60529
